Introduction

In various engineering applications, such as vacuum coating, semiconductor manufacturing, and cryogenics, the use of vacuum pumps is crucial for creating a high vacuum environment. However, the presence of water vapor and other contaminants can significantly impact the performance and lifespan of these pumps. To mitigate this issue, a cold trap is often installed in series with a vacuum pump. In this article, we will explore the purpose of installing a cold trap in series with a vacuum pump and its benefits in maintaining a high-quality vacuum environment.

What is a Cold Trap?

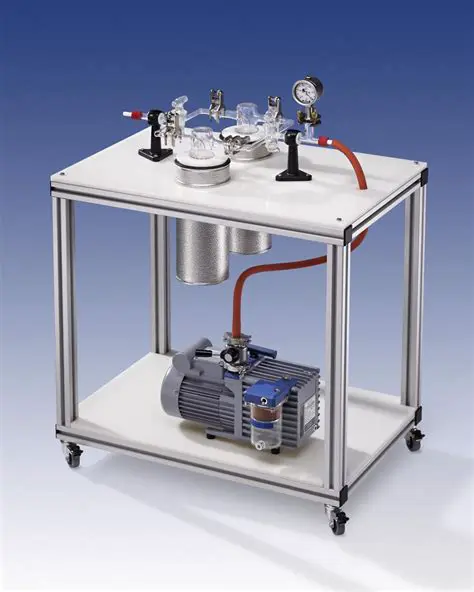

A cold trap, also known as a liquid nitrogen trap or a cryogenic trap, is a device designed to condense and remove water vapor and other contaminants from a vacuum system. It typically consists of a container filled with a cryogenic liquid, such as liquid nitrogen, which is used to cool the trap to extremely low temperatures. The cold trap is usually installed in series with a vacuum pump, allowing the pump to operate more efficiently and effectively.

The Purpose of a Cold Trap

The primary purpose of a cold trap is to reduce the rate at which water vapor is introduced into the vacuum system. Water vapor is a major contaminant that can cause problems in vacuum systems, including:

Reducing pump performance: Water vapor can condense on the pump's surfaces, reducing its efficiency and lifespan.
Causing pump failure: Excessive water vapor can lead to pump failure, resulting in costly repairs or replacements.
Affecting system accuracy: Water vapor can also impact the accuracy of measurements and processes in vacuum systems.

By installing a cold trap in series with a vacuum pump, the rate at which water vapor is introduced into the system is significantly reduced. This is achieved through the condensation of water vapor on the cold trap's surfaces, which prevents it from entering the vacuum pump.

Benefits of Cold Traps

The installation of a cold trap in series with a vacuum pump offers several benefits, including:

Improved pump performance: By removing water vapor and other contaminants, the pump operates more efficiently and effectively.
Extended pump lifespan: Reduced water vapor introduction helps to prevent pump failure and extends its lifespan.
Enhanced system accuracy: By minimizing the impact of water vapor, the accuracy of measurements and processes in vacuum systems is improved.
Reduced maintenance costs: With a cold trap in place, maintenance costs associated with pump repairs and replacements are reduced.

Common Applications of Cold Traps

Cold traps are commonly used in various engineering applications, including:

Vacuum coating: Cold traps are used to remove water vapor and other contaminants from the vacuum chamber, ensuring high-quality coatings.
Semiconductor manufacturing: Cold traps are used to maintain a high vacuum environment, which is essential for semiconductor processing.
Cryogenics: Cold traps are used to remove water vapor and other contaminants from cryogenic systems, ensuring accurate and reliable operation.

Conclusion

In conclusion, the purpose of installing a cold trap in series with a vacuum pump is to reduce the rate at which water vapor is introduced into the system. By condensing and removing water vapor and other contaminants, the cold trap helps to improve pump performance, extend its lifespan, and enhance system accuracy. The benefits of cold traps are numerous, and their use is essential in various engineering applications where high-quality vacuum environments are required.

Frequently Asked Questions

Q: What is the purpose of a cold trap in a vacuum system?

A: The primary purpose of a cold trap is to reduce the rate at which water vapor is introduced into the vacuum system.

Q: How does a cold trap work?

A: A cold trap works by condensing and removing water vapor and other contaminants from the vacuum system through the use of a cryogenic liquid, such as liquid nitrogen.

Q: What are the benefits of using a cold trap in a vacuum system?

A: The benefits of using a cold trap include improved pump performance, extended pump lifespan, enhanced system accuracy, and reduced maintenance costs.

Q: What are some common applications of cold traps?

Introduction

In our previous article, we discussed the importance of cold traps in vacuum systems and their benefits in maintaining a high-quality vacuum environment. However, we understand that there may be many questions and concerns about cold traps. In this article, we will address some of the most frequently asked questions about cold traps and provide answers to help you better understand their role in vacuum systems.

Q&A

Q: What is the ideal temperature for a cold trap?

A: The ideal temperature for a cold trap depends on the specific application and the type of contaminants being removed. However, a temperature range of -196°C to -150°C is commonly used for most vacuum applications.

Q: How often should I replace the cryogenic liquid in my cold trap?

A: The frequency of replacing the cryogenic liquid in your cold trap depends on the usage and the type of contaminants being removed. As a general rule, the cryogenic liquid should be replaced every 1-3 months, or as needed.

Q: Can I use a cold trap with a different type of vacuum pump?

A: Yes, cold traps can be used with various types of vacuum pumps, including rotary vane pumps, turbomolecular pumps, and diffusion pumps. However, it's essential to ensure that the cold trap is compatible with the specific pump and application.

Q: How do I maintain my cold trap?

A: To maintain your cold trap, follow these steps:

Regularly inspect the cold trap for signs of wear or damage.
Clean the cold trap regularly to prevent contamination.
Replace the cryogenic liquid as needed.
Ensure proper installation and operation of the cold trap.

Q: Can I use a cold trap in a high-temperature environment?

A: No, cold traps are designed to operate in low-temperature environments. Using a cold trap in a high-temperature environment can cause it to malfunction or fail.

Q: How do I troubleshoot common issues with my cold trap?

A: Common issues with cold traps include:

Low temperature: Check the cryogenic liquid level and ensure proper installation.
High pressure: Check for blockages or leaks in the system.
Contamination: Clean the cold trap regularly and ensure proper installation.

Q: Can I use a cold trap in a vacuum system with a high water vapor content?

A: No, cold traps are designed to remove water vapor and other contaminants from the vacuum system. Using a cold trap in a system with high water vapor content can cause it to malfunction or fail.

Q: How do I choose the right cold trap for my application?

A: To choose the right cold trap for your application, consider the following factors:

Temperature range: Ensure the cold trap can operate within the required temperature range.
Vacuum level: Choose a cold trap that can handle the required vacuum level.
Contaminant type: Select a cold trap designed to remove the specific contaminants present in your system.

Conclusion

In conclusion, cold traps are an essential component in vacuum systems, and understanding their operation and maintenance is crucial for optimal performance. By addressing common questions and concerns, we hope to have provided you with a better understanding of cold traps and their role in maintaining a high-quality vacuum environment.
