Introduction

When it comes to understanding the behavior of objects on an inclined plane, one of the most critical concepts to grasp is the normal force. The normal force is a fundamental force that acts perpendicular to the surface of contact between two objects. In the context of an inclined plane, the normal force plays a crucial role in determining the motion of the object. However, many students struggle to comprehend how the normal force behaves in this scenario. In this article, we will delve into the concept of normal force on an inclined plane, exploring its behavior and how it affects the motion of objects.

What is an Inclined Plane?

An inclined plane is a surface that is tilted at an angle relative to the horizontal plane. It is a simple machine that is used to lift heavy objects with minimal effort. The inclined plane is a fundamental concept in physics, and it is used in a wide range of applications, from construction to engineering.

Free Body Diagram of an Object on an Inclined Plane

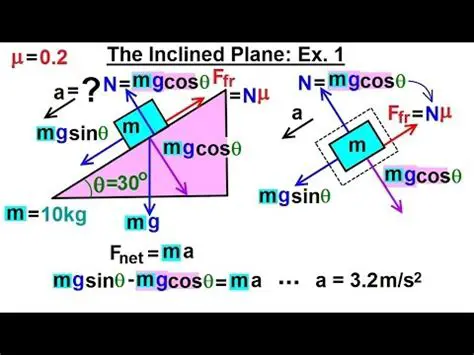

To understand the normal force on an inclined plane, we need to create a free body diagram of the object. A free body diagram is a graphical representation of the forces acting on an object. It is a crucial tool in physics that helps us visualize the forces at play.

 Forces acting on an object on an inclined plane:

Weight (W) - the force of gravity acting on the object
Normal force (N) - the force exerted by the inclined plane on the object
Frictional force (f) - the force opposing the motion of the object

Normal Force on an Inclined Plane

The normal force is a contact force that acts perpendicular to the surface of contact between the object and the inclined plane. It is a result of the interaction between the object and the inclined plane. The normal force is directed away from the surface of contact and is equal in magnitude to the component of the weight that is perpendicular to the inclined plane.

Mathematical Representation of Normal Force

The normal force (N) can be calculated using the following equation:

N = mg cos(θ)

where:

N is the normal force
m is the mass of the object
g is the acceleration due to gravity
θ is the angle of the inclined plane

Example: Calculating Normal Force on an Inclined Plane

Let's consider an example to illustrate how to calculate the normal force on an inclined plane. Suppose we have a block of mass 5 kg that is placed on an inclined plane with an angle of 30°. The acceleration due to gravity is 9.8 m/s².

Using the equation above, we can calculate the normal force as follows:

N = mg cos(θ) = 5 kg x 9.8 m/s² x cos(30°) = 5 kg x 9.8 m/s² x 0.866 = 42.3 N

Effect of Normal Force on Motion

The normal force plays a crucial role in determining the motion of an object on an inclined plane. The normal force acts perpendicular to the surface of contact, which means that it does not contribute to the motion of the object in the direction of the inclined plane. However, the normal force does affect the motion of the object in the direction perpendicular to the inclined plane.

Conclusion

In conclusion, the normal force on an inclined plane is a critical concept in physics that plays a crucial role in determining the motion of objects. The normal force is a contact force that acts perpendicular to the surface of contact between the object and the inclined plane. It can be calculated using the equation N = mg cos(θ), where N is the normal force, m is the mass of the object, g is the acceleration due to gravity, and θ is the angle of the inclined plane. Understanding the normal force on an inclined plane is essential for solving problems related to motion on inclined planes.

Common Mistakes to Avoid

When working with inclined planes, there are several common mistakes to avoid. These include:

Failing to consider the normal force when solving problems related to motion on inclined planes
Not using the correct equation to calculate the normal force
Not taking into account the angle of the inclined plane when calculating the normal force

Real-World Applications

The concept of normal force on an inclined plane has numerous real-world applications. Some of these include:

Designing inclined planes for construction and engineering projects
Understanding the motion of objects on inclined planes in various fields, such as physics, engineering, and mathematics
Calculating the normal force on inclined planes to determine the stability of objects

Final Thoughts
