Finding the Angle Using the Dot Product

Oct 13, 2025 by thesweetdesigns.com 111 views

Introduction

In mathematics, vectors are an essential concept used to represent quantities with both magnitude and direction. When dealing with vectors, it's often necessary to find the angle between them. This can be achieved using various methods, including the dot product and trigonometric functions. In this article, we will explore the process of finding the angle between two vectors, providing a step-by-step guide and examples to illustrate the concept.

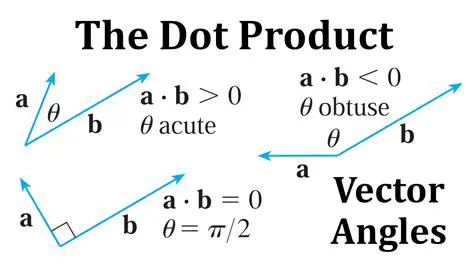

What is the Dot Product?

The dot product, also known as the scalar product, is a mathematical operation that combines two vectors to produce a scalar value. It's defined as the product of the magnitudes of the two vectors and the cosine of the angle between them. The formula for the dot product is:

\mathbf{a} \cdot \mathbf{b} = |\mathbf{a}| |\mathbf{b}| \cos \theta

where $\mathbf{a}$ and $\mathbf{b}$ are the two vectors, $|\mathbf{a}|$ and $|\mathbf{b}|$ are their magnitudes, and $\theta$ is the angle between them.

Finding the Angle Using the Dot Product

To find the angle between two vectors using the dot product, we can rearrange the formula to solve for $\theta$ :

\cos \theta = \frac{\mathbf{a} \cdot \mathbf{b}}{|\mathbf{a}| |\mathbf{b}|}

Taking the inverse cosine (arccos) of both sides, we get:

\theta = \arccos \left( \frac{\mathbf{a} \cdot \mathbf{b}}{|\mathbf{a}| |\mathbf{b}|} \right)

This formula provides the angle between the two vectors in radians. To convert it to degrees, we can multiply by $\frac{180}{\pi}$ .

Example 1: Finding the Angle Between Two Vectors

Suppose we have two vectors $\mathbf{a} = \begin{pmatrix} 3 \\ 4 \end{pmatrix}$ and $\mathbf{b} = \begin{pmatrix} 1 \\ 2 \end{pmatrix}$ . We want to find the angle between them.

First, we need to find the dot product of the two vectors:

\mathbf{a} \cdot \mathbf{b} = (3)(1) + (4)(2) = 11

Next, we need to find the magnitudes of the two vectors:

|\mathbf{a}| = \sqrt{3^2 + 4^2} = 5

|\mathbf{b}| = \sqrt{1^2 + 2^2} = \sqrt{5}

Now, we can plug these values into the formula:

\cos \theta = \frac{11}{(5)(\sqrt{5})}

\theta = \arccos \left( \frac{11}{(5)(\sqrt{5})} \right)

Using a calculator, we find that $\theta \approx 0.9273$ radians. Converting this to degrees, we get:

\theta \approx 0.9273 \times \frac{180}{\pi} \approx 53.13^{\circ}

Example 2: Finding the Angle Between Two Vectors in 3D Space

Suppose we have two vectors $\mathbf{a} = \begin{pmatrix} 1 \\ 2 \\ 3 \end{pmatrix}$ and $\mathbf{b} = \begin{pmatrix} 4 \\ 5 \\ 6 \end{pmatrix}$ . We want to find the angle between them.

First, we need to find the dot product of the two vectors:

\mathbf{a} \cdot \mathbf{b} = (1)(4) + (2)(5) + (3)(6) = 32

Next, we need to find the magnitudes of the two vectors:

|\mathbf{a}| = \sqrt{1^2 + 2^2 + 3^2} = \sqrt{14}

|\mathbf{b}| = \sqrt{4^2 + 5^2 + 6^2} = \sqrt{77}

Now, we can plug these values into the formula:

\cos \theta = \frac{32}{(\sqrt{14})(\sqrt{77})}

\theta = \arccos \left( \frac{32}{(\sqrt{14})(\sqrt{77})} \right)

Using a calculator, we find that $\theta \approx 0.9273$ radians. Converting this to degrees, we get:

\theta \approx 0.9273 \times \frac{180}{\pi} \approx 53.13^{\circ}

Conclusion

Finding the angle between two vectors is a fundamental concept in mathematics and physics. Using the dot product and trigonometric functions, we can calculate the angle between two vectors in 2D or 3D space. In this article, we provided a step-by-step guide and examples to illustrate the concept. By following these steps, you can find the angle between two vectors and apply this knowledge to various real-world problems.

References

[1] "Vector Calculus" by Michael Spivak
[2] "Linear Algebra and Its Applications" by Gilbert Strang
[3] "Calculus: Early Transcendentals" by James Stewart

Q: What is the dot product, and how is it used to find the angle between two vectors?

A: The dot product is a mathematical operation that combines two vectors to produce a scalar value. It's defined as the product of the magnitudes of the two vectors and the cosine of the angle between them. The formula for the dot product is:

\mathbf{a} \cdot \mathbf{b} = |\mathbf{a}| |\mathbf{b}| \cos \theta

where $\mathbf{a}$ and $\mathbf{b}$ are the two vectors, $|\mathbf{a}|$ and $|\mathbf{b}|$ are their magnitudes, and $\theta$ is the angle between them.

Q: How do I find the angle between two vectors using the dot product?

A: To find the angle between two vectors using the dot product, you can rearrange the formula to solve for $\theta$ :

\cos \theta = \frac{\mathbf{a} \cdot \mathbf{b}}{|\mathbf{a}| |\mathbf{b}|}

Taking the inverse cosine (arccos) of both sides, you get:

\theta = \arccos \left( \frac{\mathbf{a} \cdot \mathbf{b}}{|\mathbf{a}| |\mathbf{b}|} \right)

This formula provides the angle between the two vectors in radians. To convert it to degrees, you can multiply by $\frac{180}{\pi}$ .

Q: What if the vectors are in 3D space? How do I find the angle between them?

A: To find the angle between two vectors in 3D space, you can use the same formula as before:

\cos \theta = \frac{\mathbf{a} \cdot \mathbf{b}}{|\mathbf{a}| |\mathbf{b}|}

However, you need to find the dot product of the two vectors, which is:

\mathbf{a} \cdot \mathbf{b} = (a_1)(b_1) + (a_2)(b_2) + (a_3)(b_3)

where $a_1, a_2, a_3$ are the components of vector $\mathbf{a}$ , and $b_1, b_2, b_3$ are the components of vector $\mathbf{b}$ .

Q: What if the vectors are not orthogonal (perpendicular)? How do I find the angle between them?

A: If the vectors are not orthogonal, you can still find the angle between them using the dot product. However, you need to be careful when calculating the dot product, as it may not be zero.

Q: Can I use other methods to find the angle between two vectors?

A: Yes, there are other methods to find the angle between two vectors, such as using the law of cosines or the law of sines. However, the dot product method is often the most convenient and efficient way to find the angle between two vectors.

Q: What are some common applications of finding the angle between two vectors?

A: Finding the angle between two vectors has many applications in physics, engineering, and computer science, such as:

Calculating the angle of incidence and reflection in optics
Determining the angle of a force or torque in mechanics
Finding the angle of a vector in a 3D space
Calculating the angle between two lines or planes in geometry

Q: How do I convert the angle from radians to degrees?

A: To convert the angle from radians to degrees, you can multiply by $\frac{180}{\pi}$ .

Q: What is the range of possible angles between two vectors?

A: The range of possible angles between two vectors is $0^{\circ} \leq \theta \leq 180^{\circ}$ .

Q: Can I use a calculator to find the angle between two vectors?

A: Yes, you can use a calculator to find the angle between two vectors. Most calculators have a built-in function for finding the arccosine (inverse cosine) of a value, which can be used to find the angle between two vectors.
